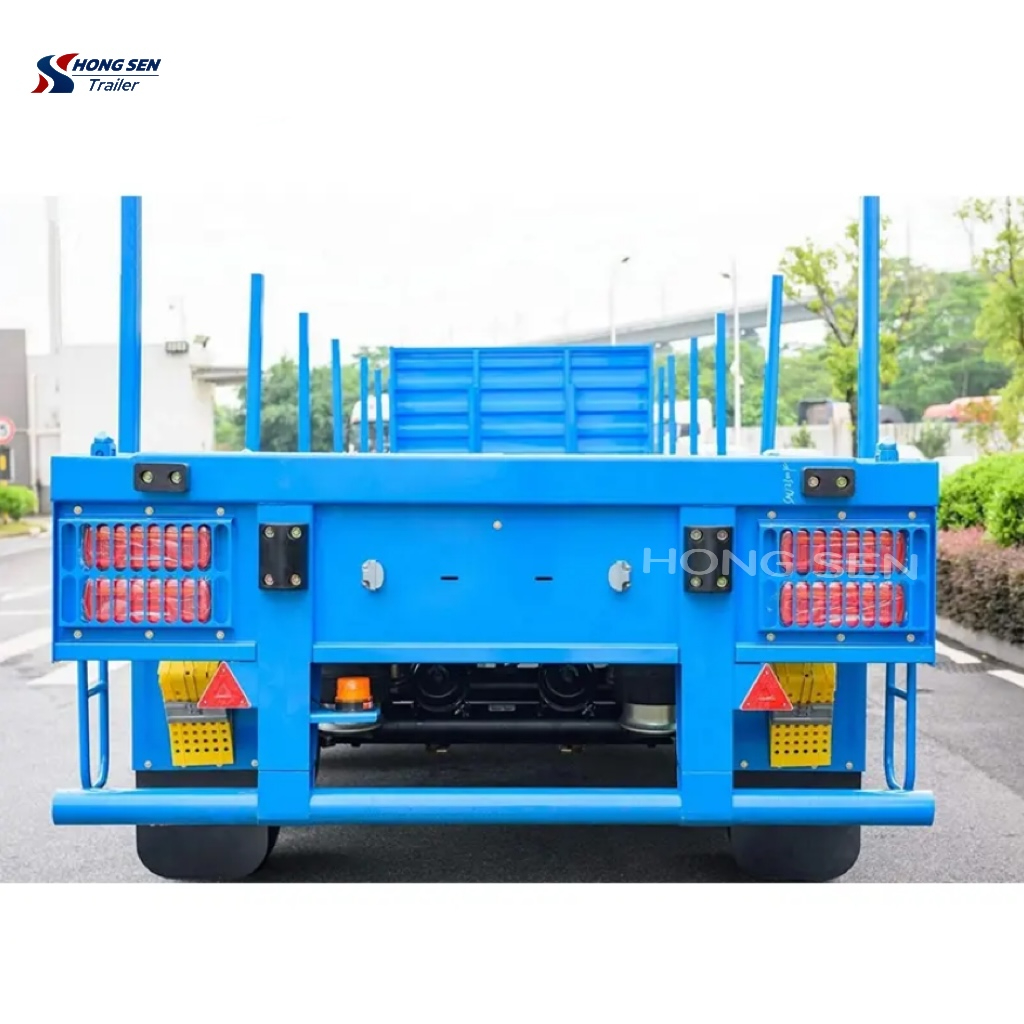

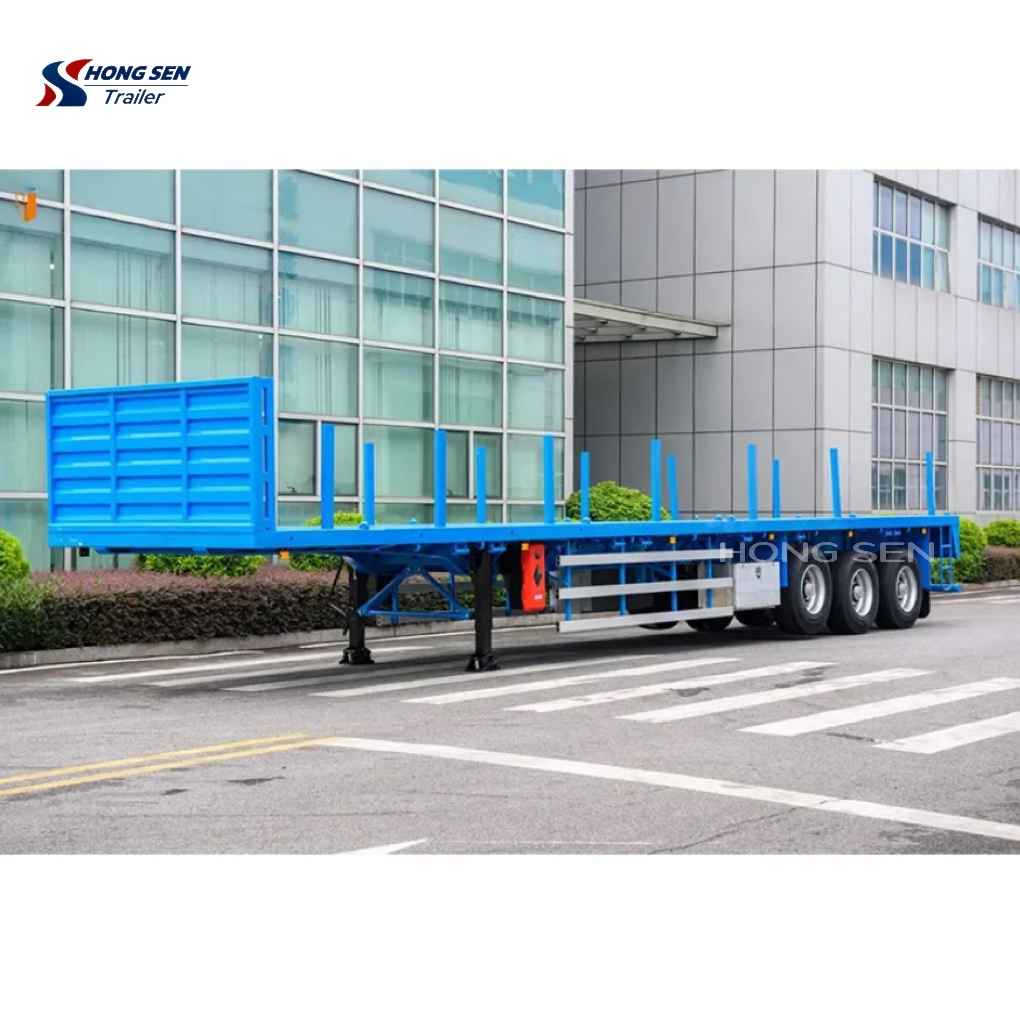

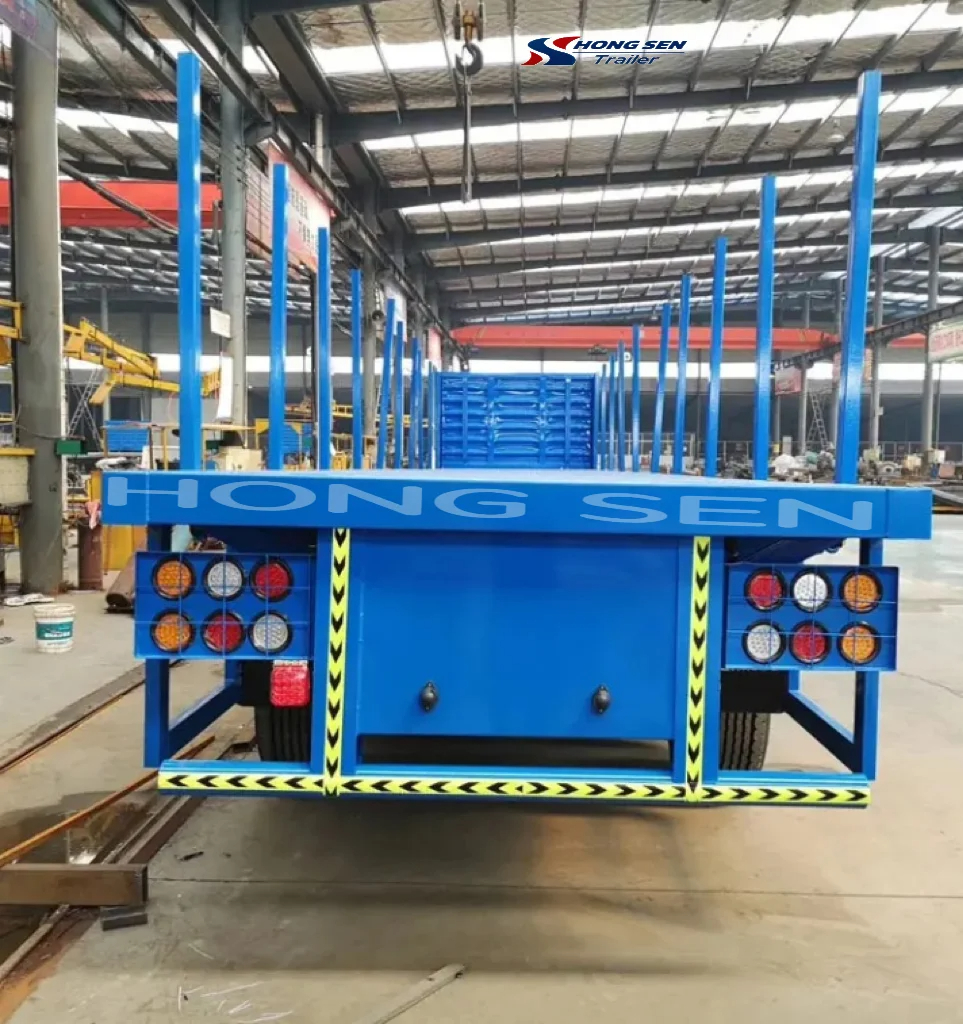

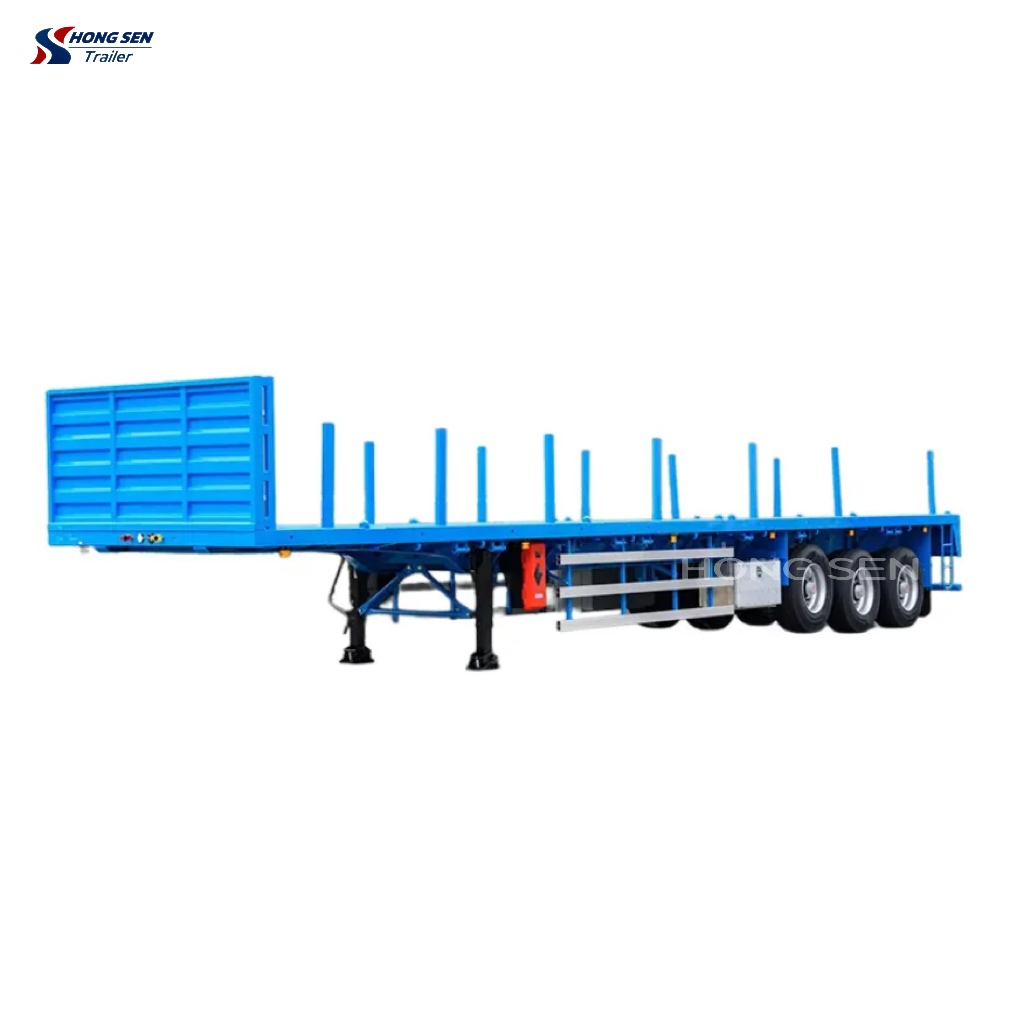

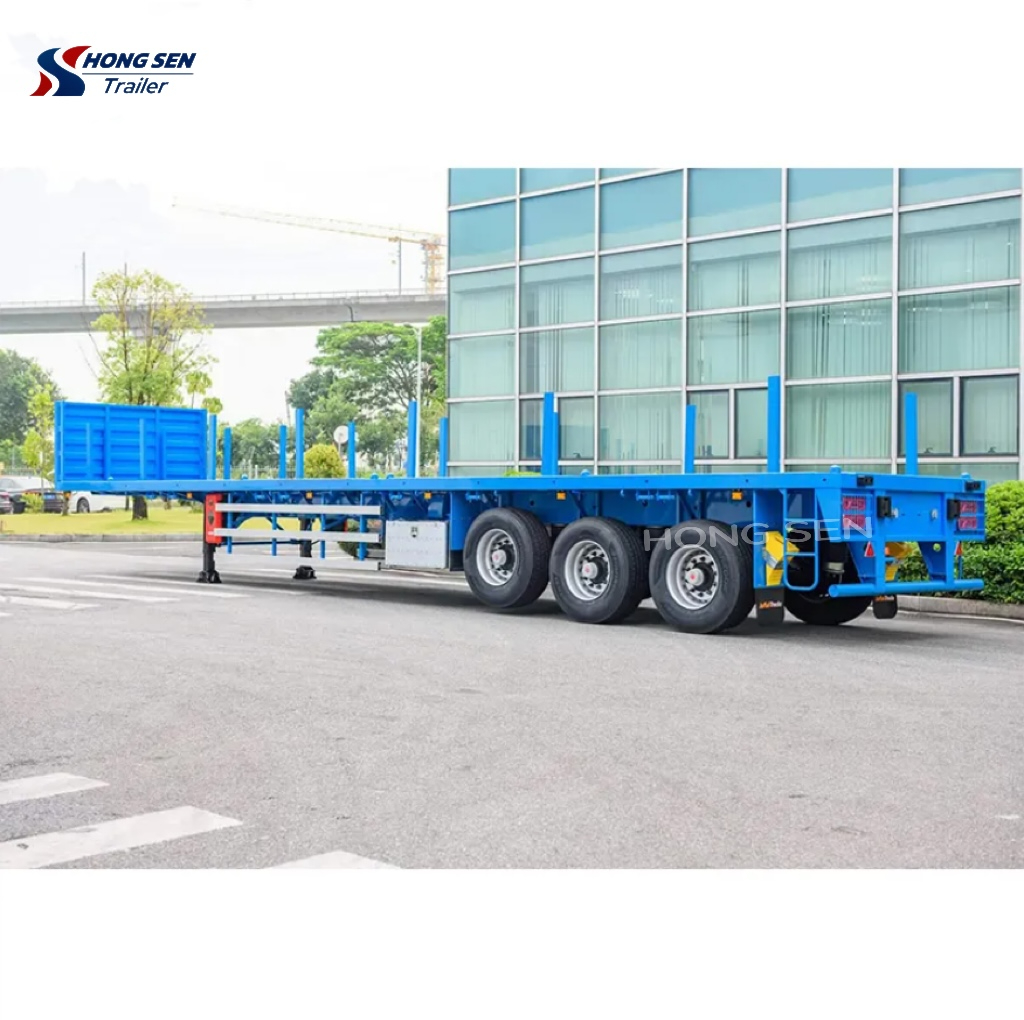

3 Axle Flatbed Trailer with Side Bar Stick Pipe

Hongsen 3 Axle 40ft Flatbed semi trailer with side bar stick pipe and Head board,This configuration of Container Flatbed trailer are very popular in Saudi Arabia.

3 Axles: Provides superior load capacity and stability for heavy-duty applications.

40ft : Accommodates a wide range of cargo, including long and bulky items.

Side Bars: Enhance safety and security by preventing cargo from shifting or falling off during transit.

High-Strength Steel Construction: Ensures durability and longevity even under the most demanding conditions.

3 axle flatbed semi trailer for sale in Saudi Arabia

3 axle flatbed semi trailer for sale in Saudi Arabia

3 axle flatbed semi trailer for sale in Saudi Arabia

Specification：

-Overall Dimension :13600*2500*1413 (Lx wx H)(mm)

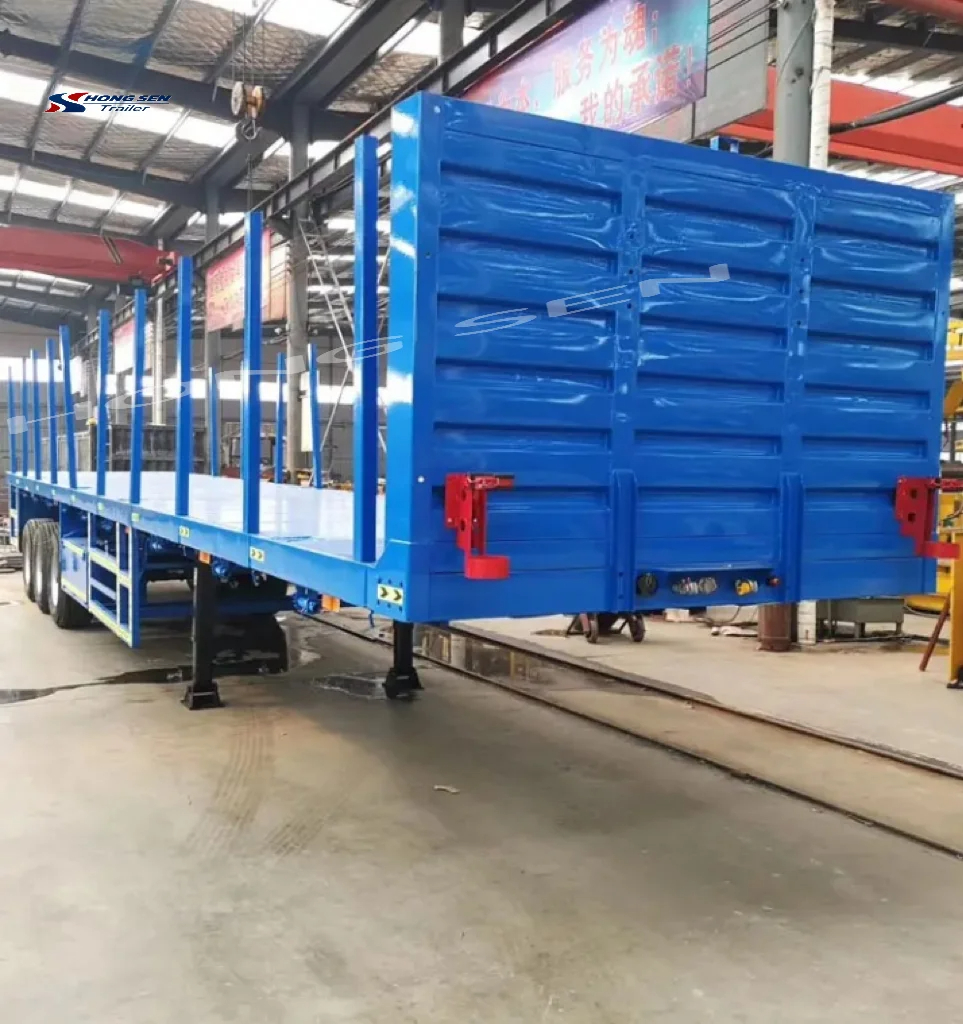

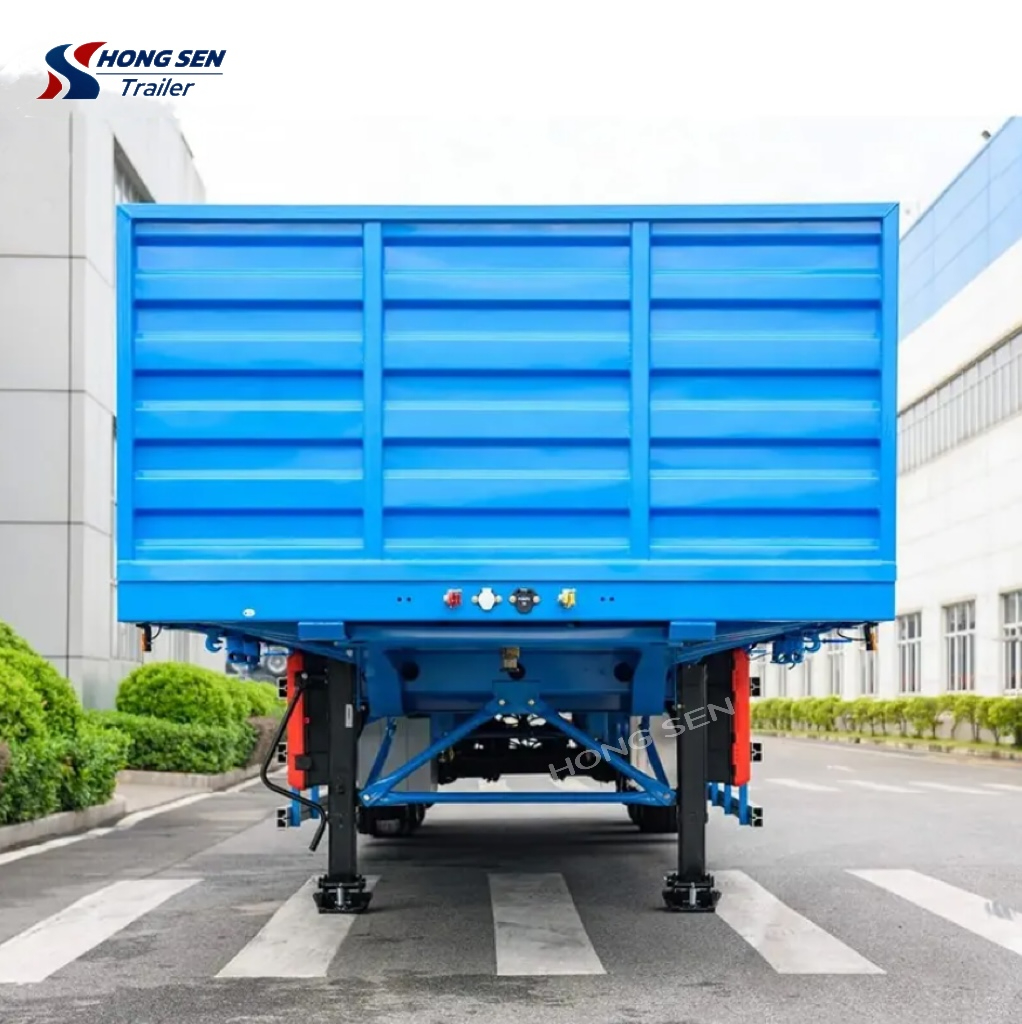

-Head board: 1000mm high, Movable

-Axle Brand: 13TON Axle,Fuwa/Hongsen brand

-Axle Number: 3 axles

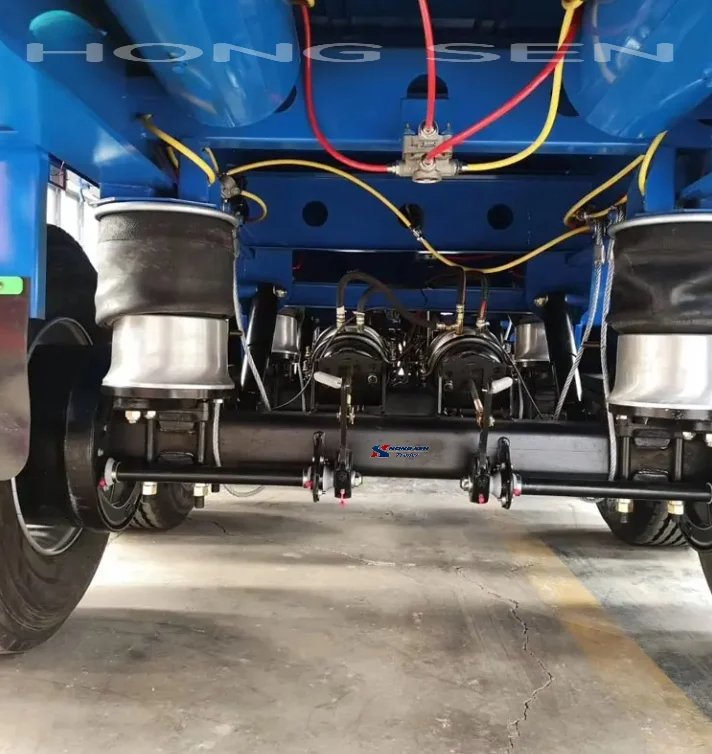

-Suspension system: Air Suspension

-Platform plate: 3mm thickness Diamond plate

-The material of Main beam:

height of the beam is 500mm,

front frame height is 250mm，

upper plateis 14mm, down plate is 16mm, middle plate is 8mm.

-Container Twist Locker: 12 pcs of container twist lockstarted from the back side

-Side Stick Pipe: 9+9 No.  Square tube with the size 60*80mm, 3mm thickness

-Tire Type and quantity: 385/65R22.5, tubeless type, 6units,ZW brand

-King Pin: 2”Jost

-Tool Box: 1 Standard

-Spare Wheel Bracket: 2 pieces

-Landing Gear: 25T heavy duty,Jost Brand-

With one more fixation plate for the Kingpin
