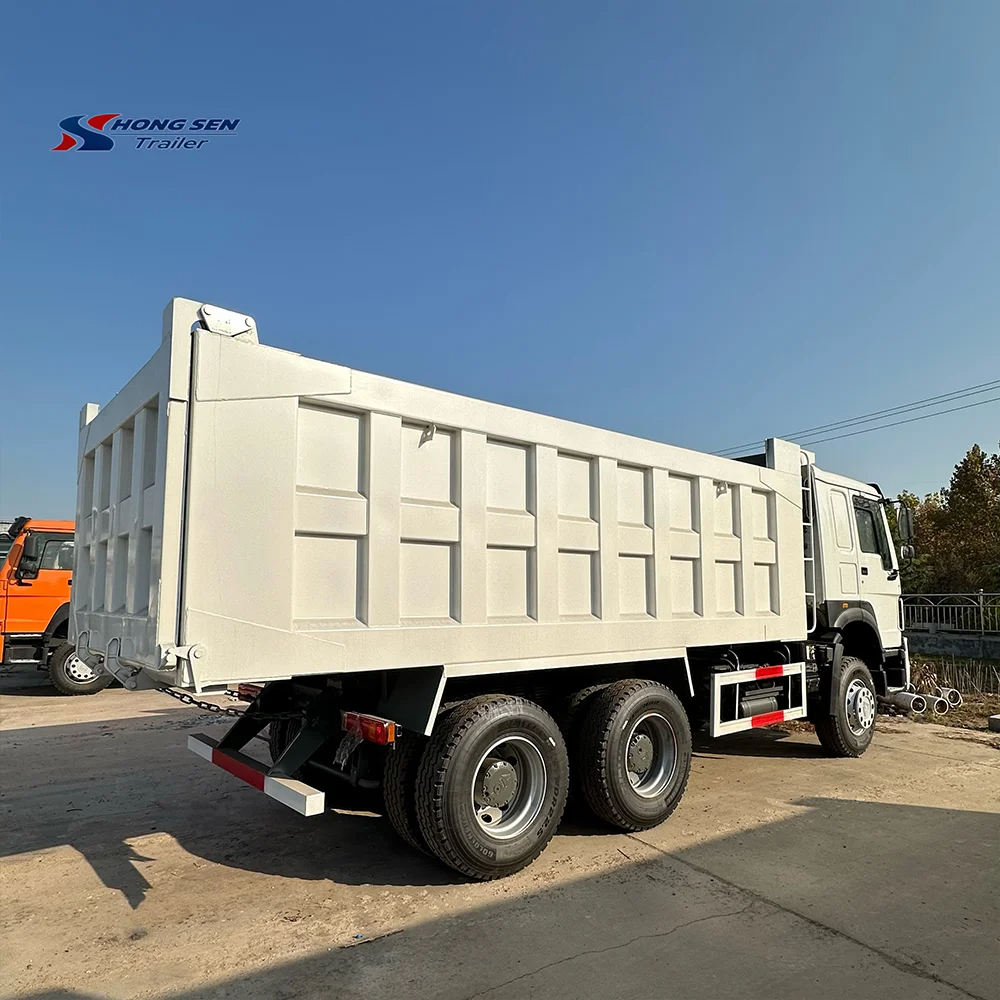

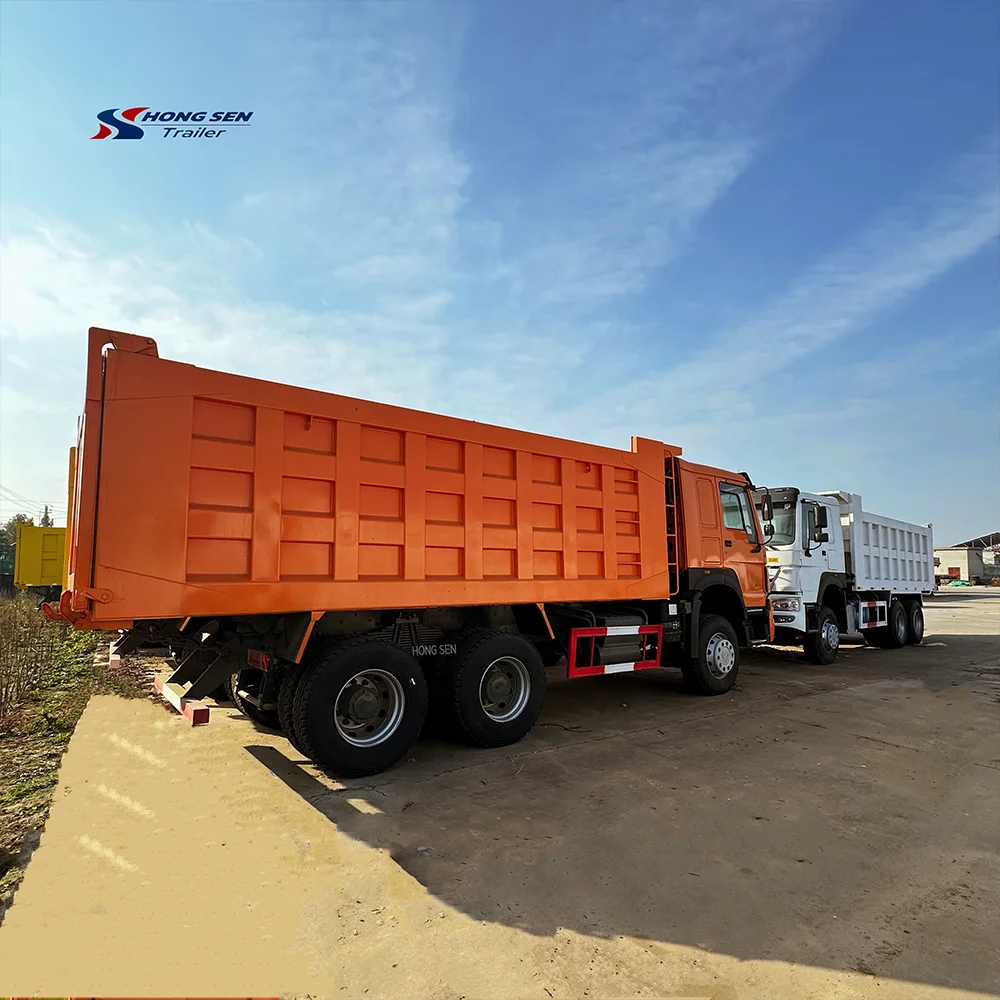

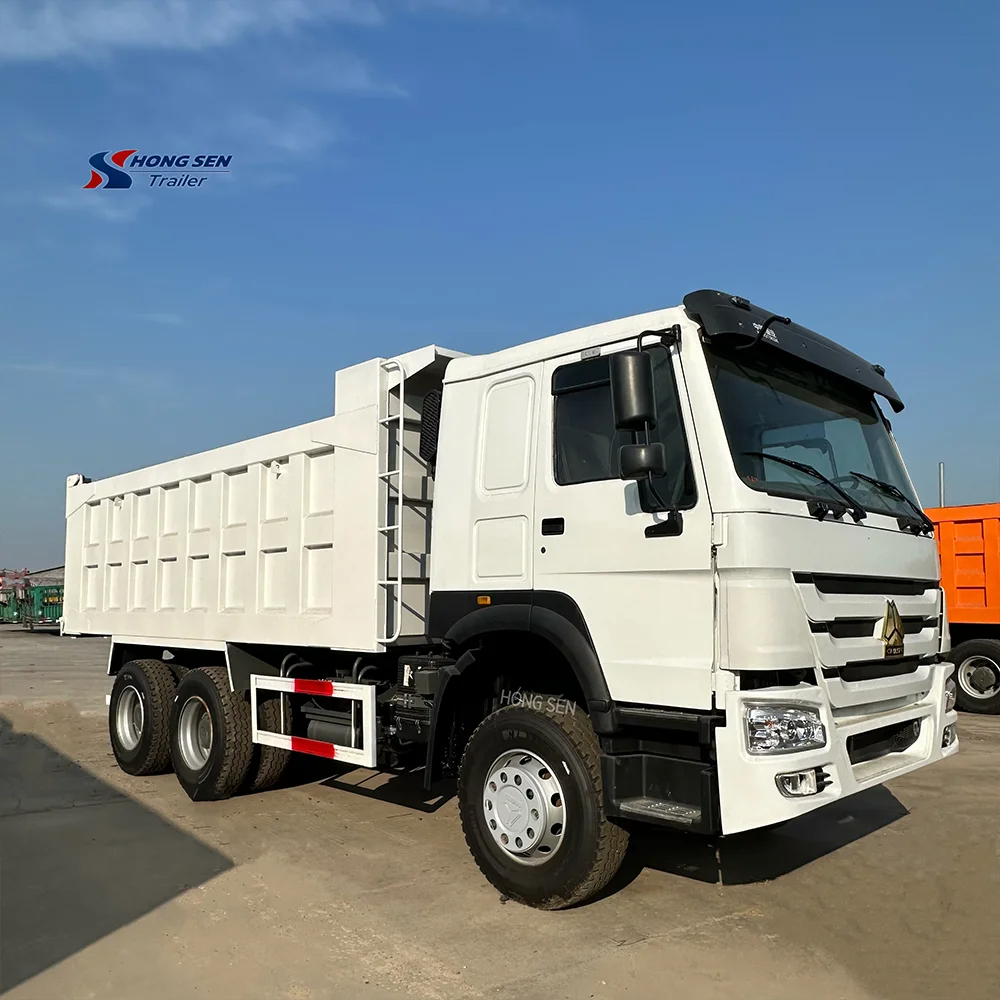

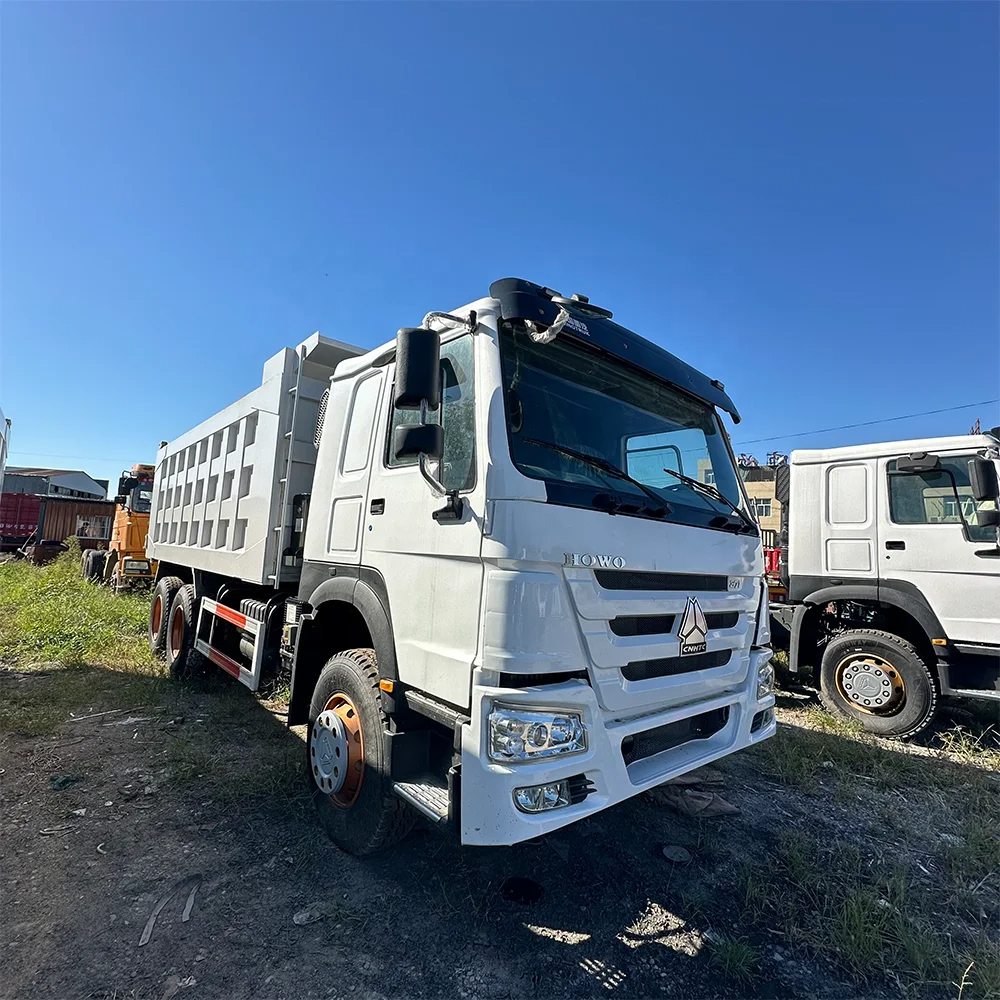

Howo 375hp 6x4 Dump Truck

Sinotruk Howo 375hp 6x4 Dump Truck!  This heavy-duty workhorse is built to tackle the toughest jobs, from construction and mining.

Powerful Engine: Equipped with a robust 375hp engine, this truck delivers exceptional power and torque, ensuring smooth operation even under heavy loads and challenging conditions.

6x4 Drive System: The 6x4 wheel configuration provides superior traction and stability, allowing you to navigate any terrain with confidence.

Heavy-Duty Construction: Built with high-strength materials and a rugged frame, the Howo dump truck is designed to withstand the rigors of daily use in demanding environments.

Maximize Efficiency:

Large Capacity: The 20 CBM spacious cargo body allows for efficient hauling of large volumes of materials, reducing the number of trips and saving you valuable time and resources.

Reliable Transmission: The smooth and precise transmission ensures seamless gear changes, optimizing fuel efficiency and productivity.

Durable Components: From the axles to the suspension, every component is engineered for durability and longevity, minimizing downtime and maintenance costs.

Specification

Model: HOWO ZZ3257N3847E1

Drive Configuration: 6x4

Cab Type: High-strength steel sleeper cab

Engine Model: CNHTC WD615.95 (Euro III/IV/V

Displacement: 9.726 L

Max Power: 276 kW (375 HP)

Max Torque: 1,500 Nm

Fuel Tank Capacity: 400 L

Transmission Model: HW19710 (CNHTC)

Type: Manual, 10-speed

Gear Ratios: 12.26–0.78

Front Axle: HR7 (7-ton capacity)

Rear Axle: STR16 (Double-reduction axle, 16-ton capacity)

Suspension:

Front: Leaf spring (12-leaf)

Rear: Leaf spring (12+9 composite leaf)

Frame: 300mm high-strength channel beam (8+5mm thickness)

Body Material: High-strength steel (16mm base, 12mm sides)

Body Dimensions

Length: 5.6–6.0 m Width: 2.3 m Height: 1.5 m

Loading Capacity: ~13–16 metric tons

Dump Mechanism: Hydraulic tipping system

Max Tipping Angle: 50°

Tipping Time: ≤ 20 seconds

Overall Dimensions:

Length: ~8,950 mm Width: ~2,500 mm Height: ~3,500 mm

Wheelbase: 4,100 + 1,350 mm

Curb Weight: ~12,000 kg

Gross Vehicle Weight (GVW): 25,000 kg

Contact us today to learn more about the Sinotruk Howo 375hp 6x4 Dump Truck and how it can revolutionize your operations!
