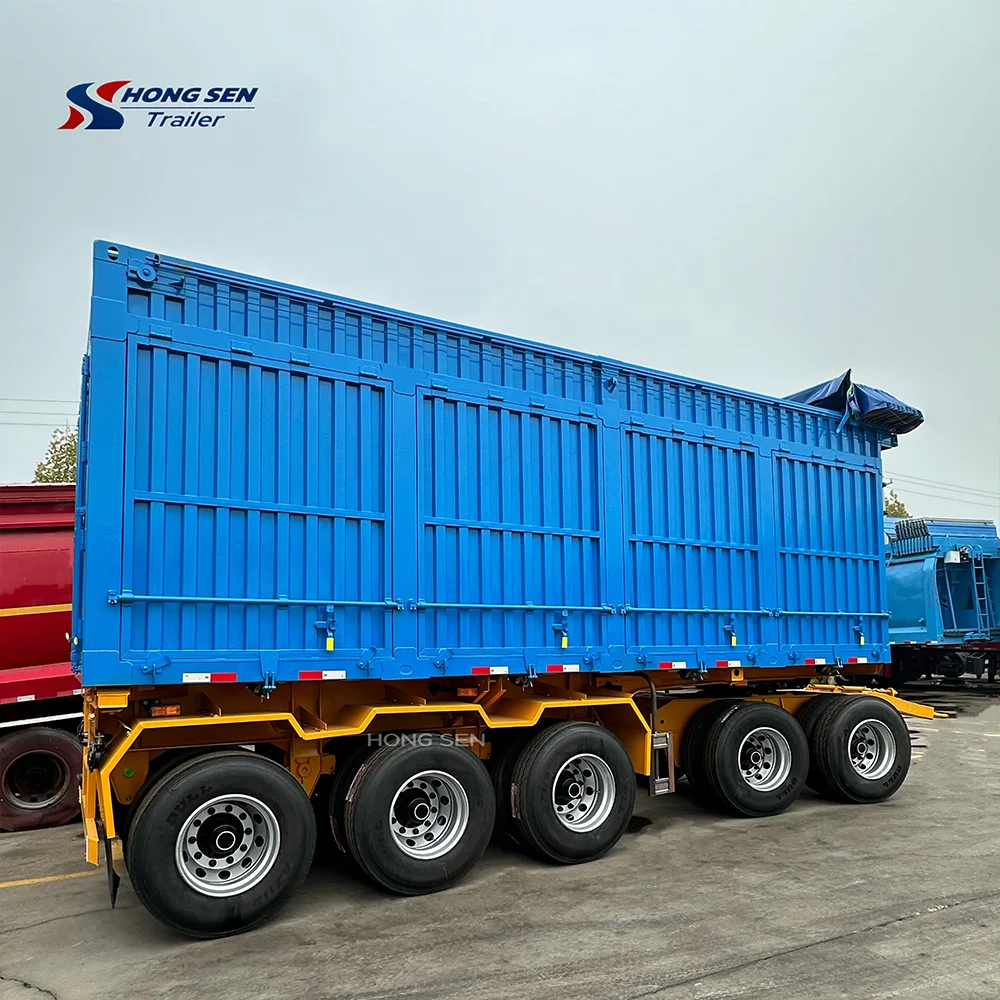

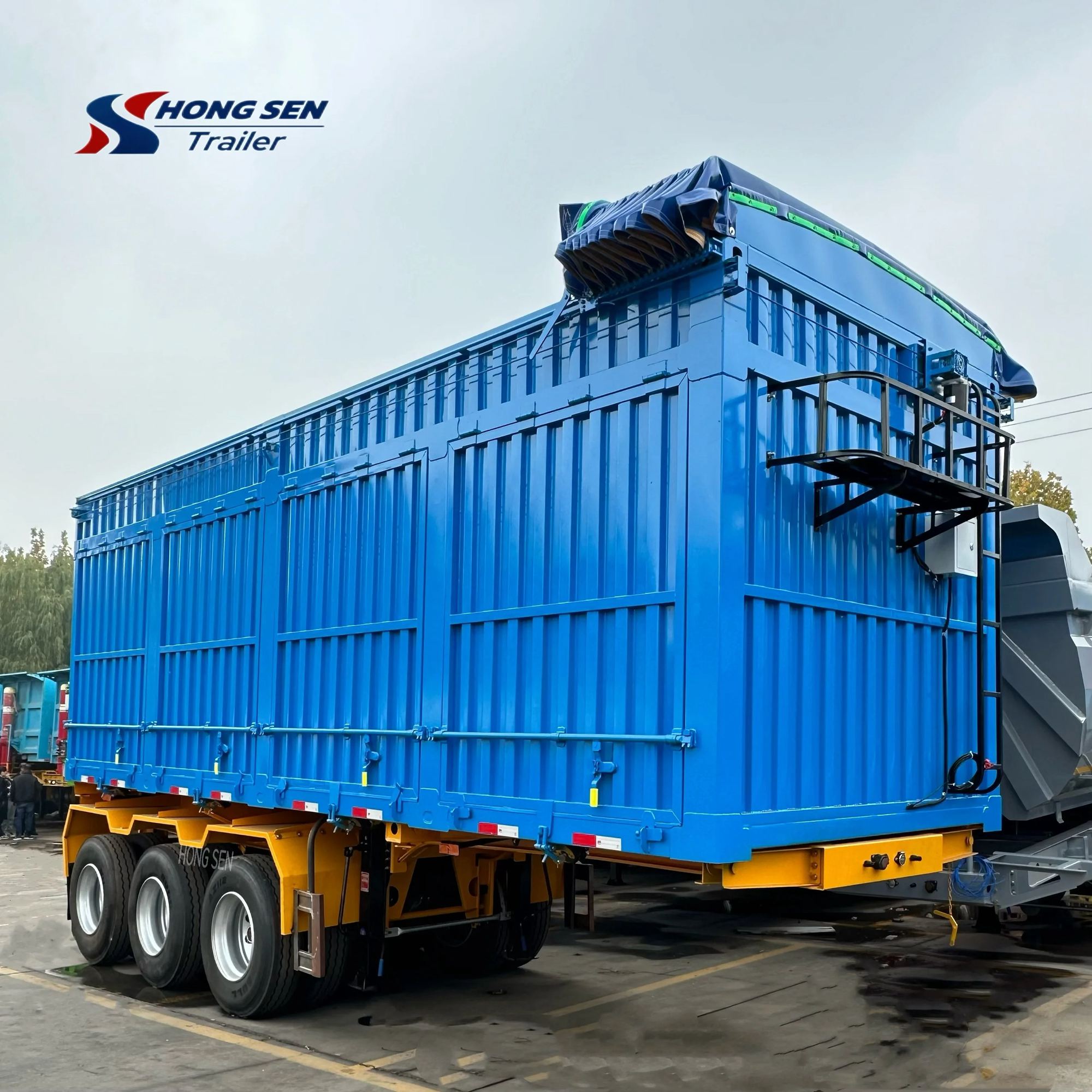

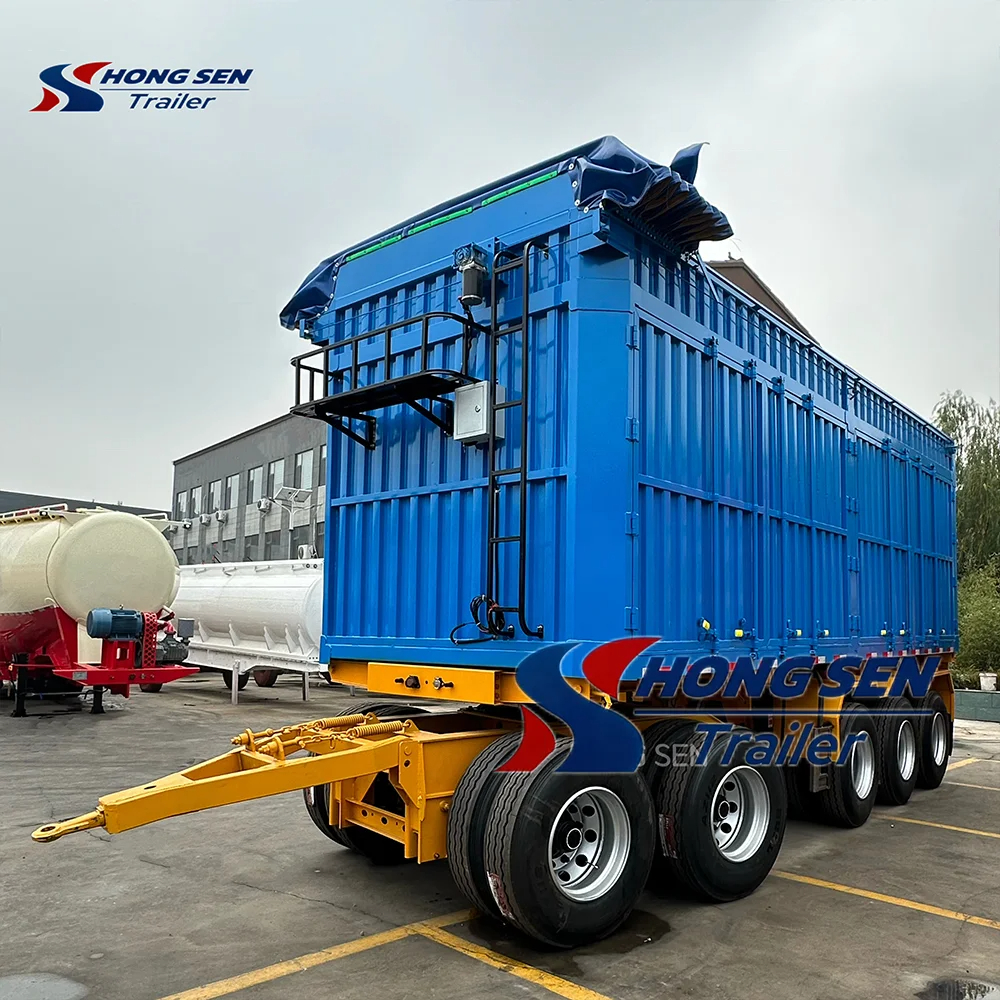

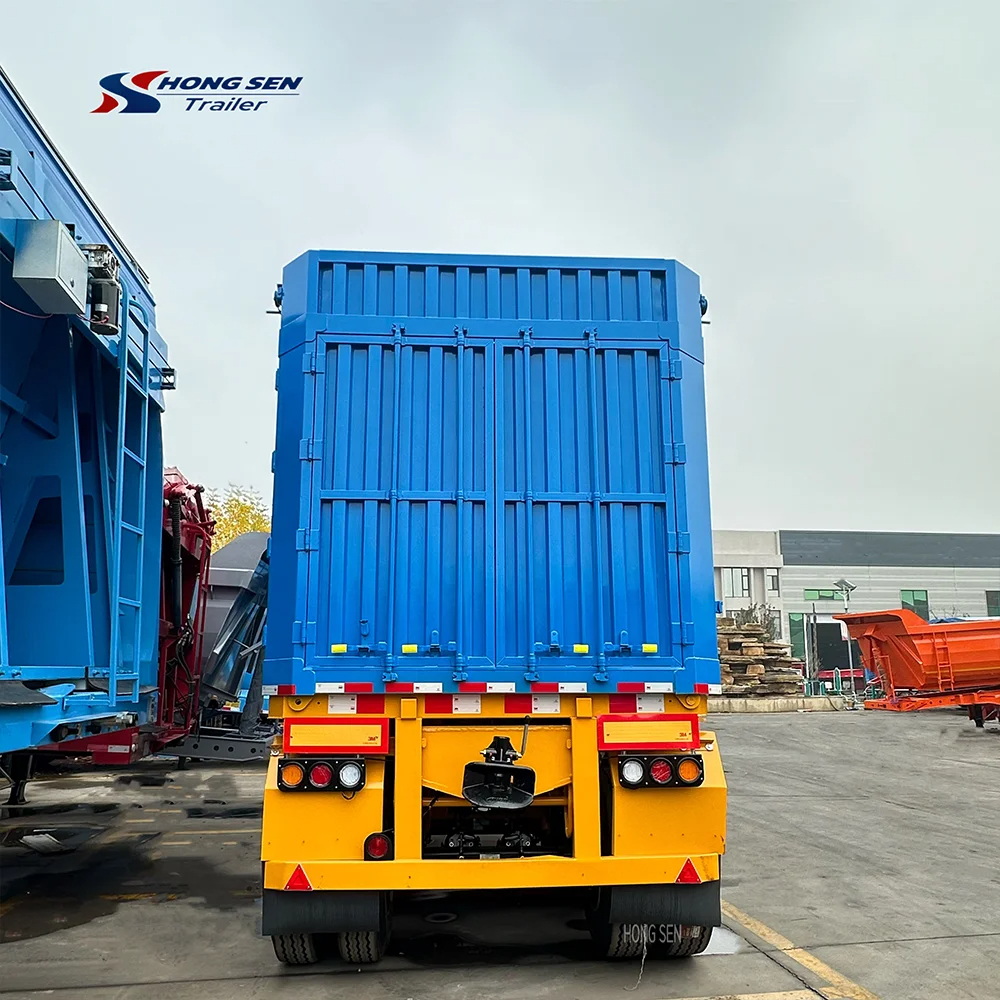

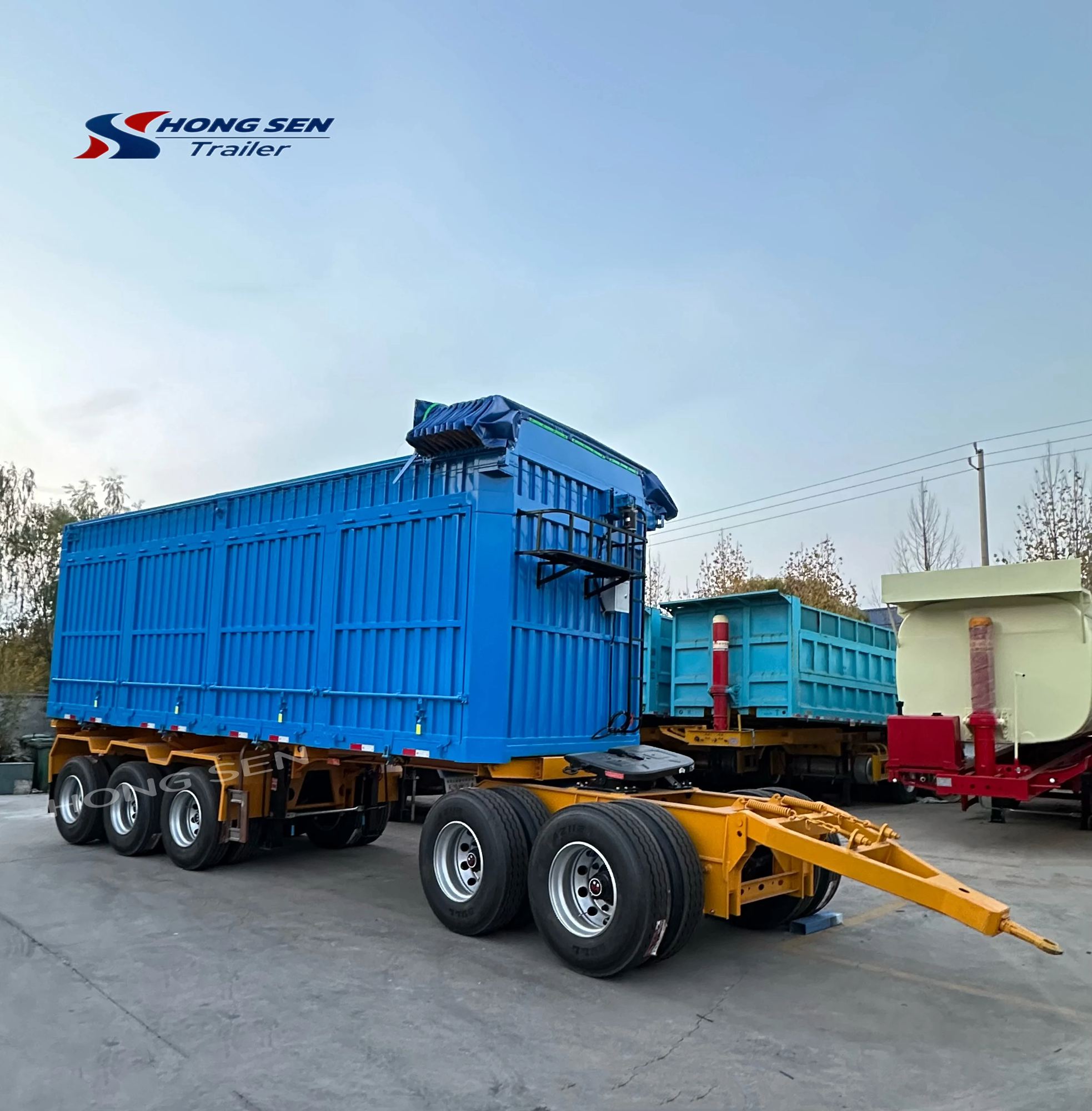

3-Axle 40CBM Hydraulic Side Dump Full Trailer

Hongsen 3 Axle Side Dump Full Trailer Transport more in fewer trips, boosting your operational efficiency.

The cargo volume of the car can reach 45 square meters (non-standard 65 square), and the weight can reach 80T-100T, which greatly improves the working efficiency.

Large Capacity: The 40CBM capacity allows you to transport significant volumes of materials in a single trip, reducing transportation costs and increasing productivity.

Full Drawbar Design: The full drawbar configuration provides excellent maneuverability and stability, making it easy to navigate tight spaces and challenging terrains.

Powerful Hydraulic System: Use advanced hydraulic system ensures effortless and precise side dumping, maximizing efficiency and minimizing downtime.

Side tipper trailer beam height 500mm, upper wing Plate 16mm, lower wing 18mm, web 10mm, side beam 18# channel steel, commonly known as 10# channel steel, 6 bottom channel, bottom plate 2.75mm pattern.

Side tipper trailer is of good quality,we use carbon steel Q235 or Q345 or T700 or other material as clients needs.

Robust Construction: Built with high-quality materials and expert craftsmanship, this trailer is designed to withstand the toughest conditions and heavy loads.

Safety First: Equipped with advanced safety features, including reliable braking systems and sturdy construction, this trailer prioritizes the safety of your operators and cargo.

Specification

Overall dimension: 12500mm * 2500mm *3700mm

Volume: 35--40CBM

Axles: 3 Axle in the front 4 Axles in the back

Suspension: Heavy duty mechanical suspension

Handling mode：Side dump

Tipping system: FC202 hydraulic cylinder

Tire: 12 units / 16 units

King pin: 90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights
